Initial Setup

This section describes requirements you need to run Lantronix Provisioning Manager and how to complete the Setup Wizard.

Requirements

To use LPM, ensure the following requirements are met.

Operating System Requirements:

  • Windows 7 or higher (64-bit)
  • Ubuntu 14.04 or higher (64-bit)
  • Mac OS X (64-bit)

Hardware Requirements:

  • 64-bit processor
  • 2 GB RAM or higher

Network Requirements:

  • UDP port 30718 must be available. This is used for device discovery using LDP.
  • For OOB devices, SSH must be successful.
  • The network must support UDP broadcast and unicast packets.

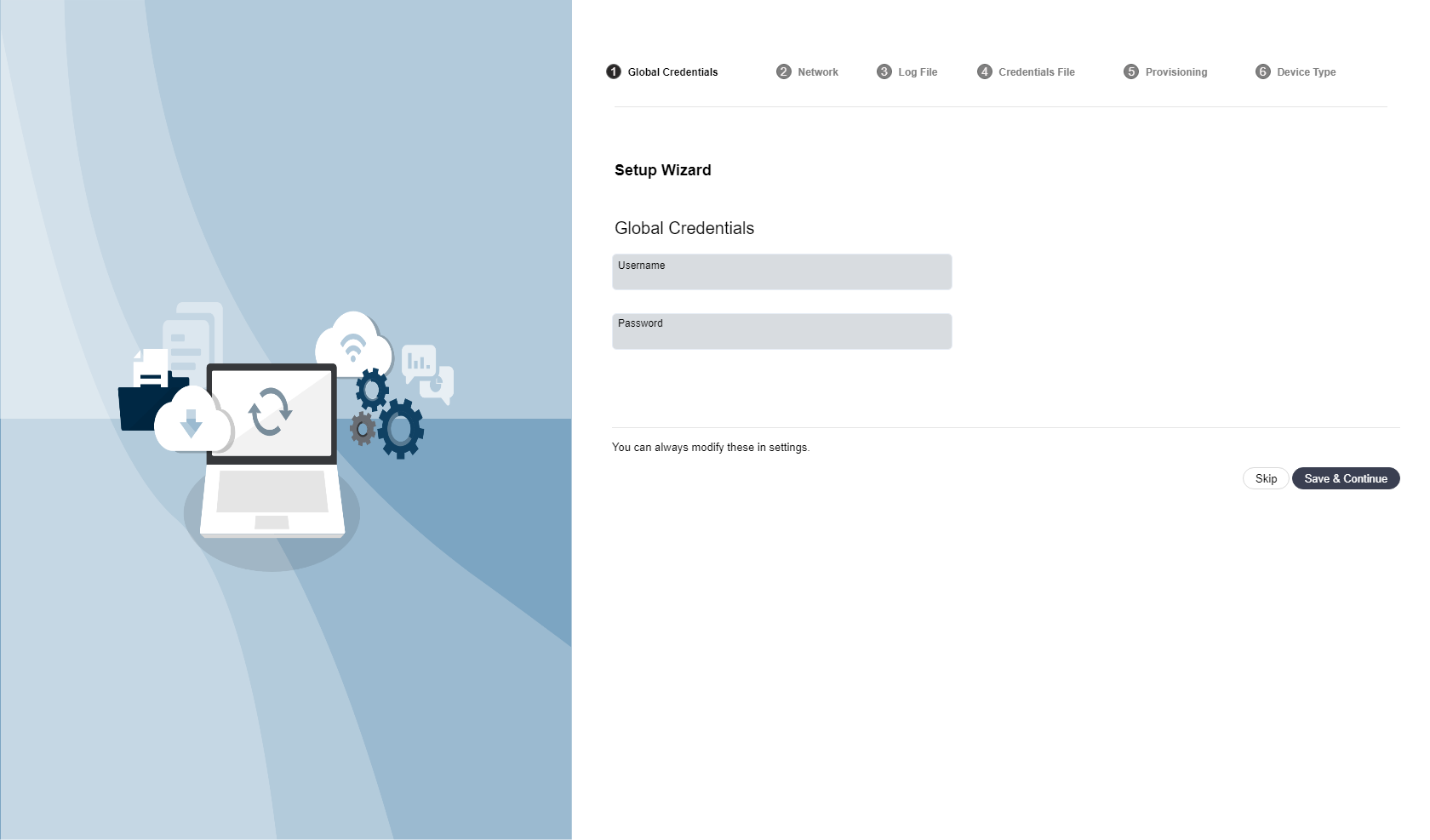

Setup Wizard

Lantronix Provisioning Manager

The first time LPM is launched, the Setup Wizard walks you through initial configuration. For each setting, enter the requested information then click Save & Continue, or click Skip to bypass the setting. Any skipped settings can be configured from the Settings page.

  1. Global Credentials - configure the credentials to specify what LPM uses to authenticate all devices if the device isn't found in the credentials file (see step 4 below). See Device Credentials for more information.
  2. Network - enter the unicast IP Range(s) and the network interface LPM will use to scan for devices. See Network Settings for more information.
  3. Log File - choose the level of detail for the logs. See Log File for more information.
  4. Credentials File - upload a credentials file if you want to specify device-specific login credentials. See Device Credentials and Credentials File for more information.
  5. Provisioning - enter Percepxion/ConsoleFlow server settings and login credentials. See Percepxion Configuration for more information.
  6. Device Type - select the type(s) of devices to use with LPM (selecting no device types is the same as selecting all). See Device Types for more information.
  7. Click Save & Finish to complete the wizard and load the Provision page.
