Power Supply Interfaces¶

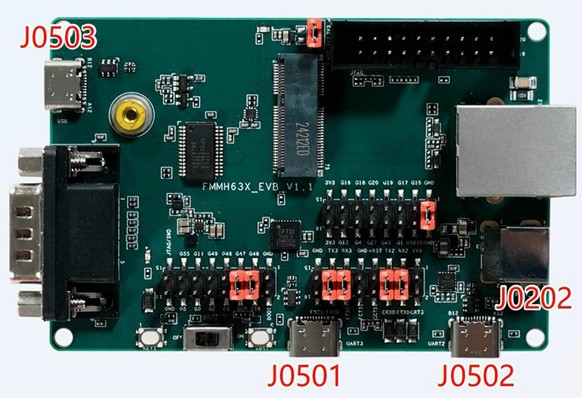

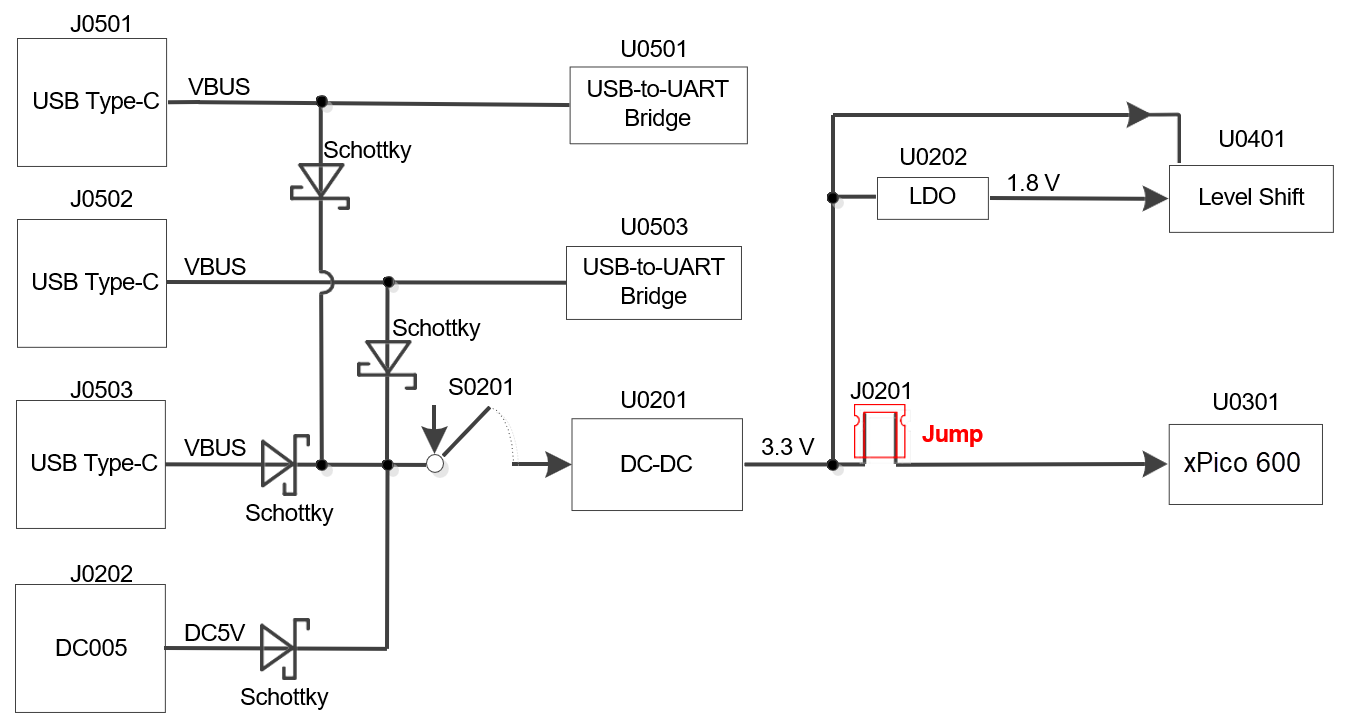

The xPico 600 EVB can be powered by power supply interfaces (J0202, J0501, J0502, J0503). The J0202 interface is compatible with a 5.5 mm × 2.1 mm plug. The simplified power supply schematic of the xPico 600 EVB is provided below.
