Power Switch & Buttons

The xPico 600 EVB includes a power switch (S0201), a reset button (S0301), and a function button (S0302), shown below.

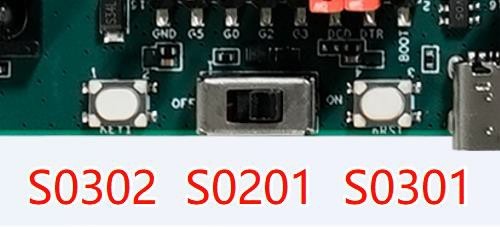

xPico 600 EVB Power Switch & Buttons

Description of Power Switch & Buttons

Ref. Description	Description
S0201	VBAT ON/OFF control
S0301	Resets the module
S0302	Customizable function, connected to GPO12
