Status Indicators

The xPico 600 EVB includes 2 status indicators (D0208 and D0303), as shown in the figure below.

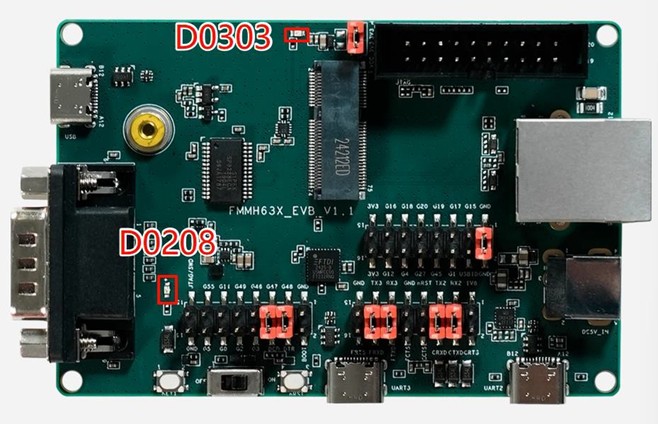

xPico 600 EVB Status Indicators

Description of Status Indicators

Ref. Description	Description
D0208	Indicates VBAT status of the module: Light on: VBAT turns on Light off: VBAT turns off
D0303	Controlled by GPIO11, lights up at low level
