Note

All dimensions on this page are measured in millimeters (mm) and the dimensional tolerances are ± 0.2 mm unless otherwise specified.

CAD Files

This section will be completed in a future revision of the document.

Mechanical Dimensions

LGA Module Dimensions

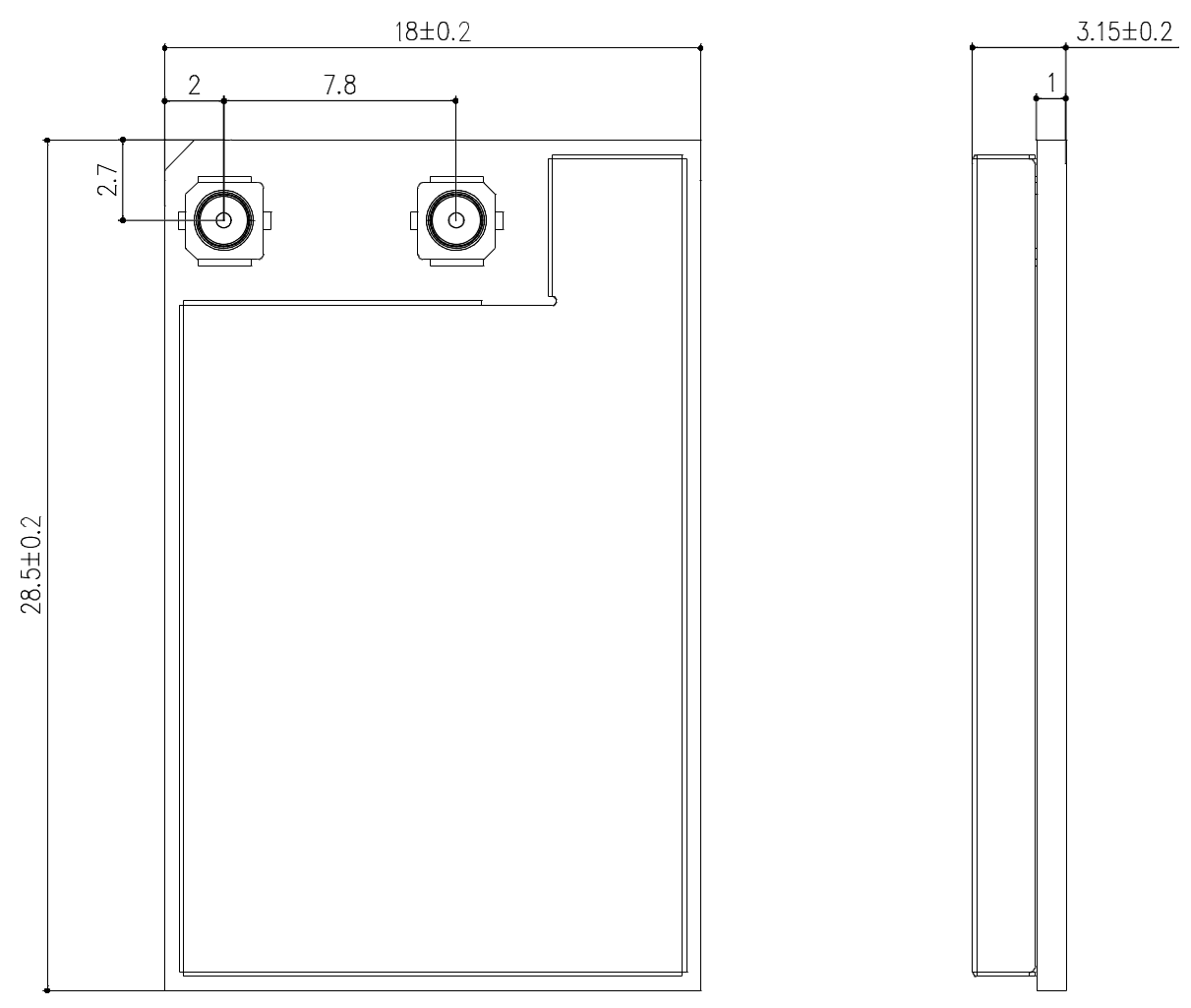

xPico 600 LGA Top and Side Dimensions

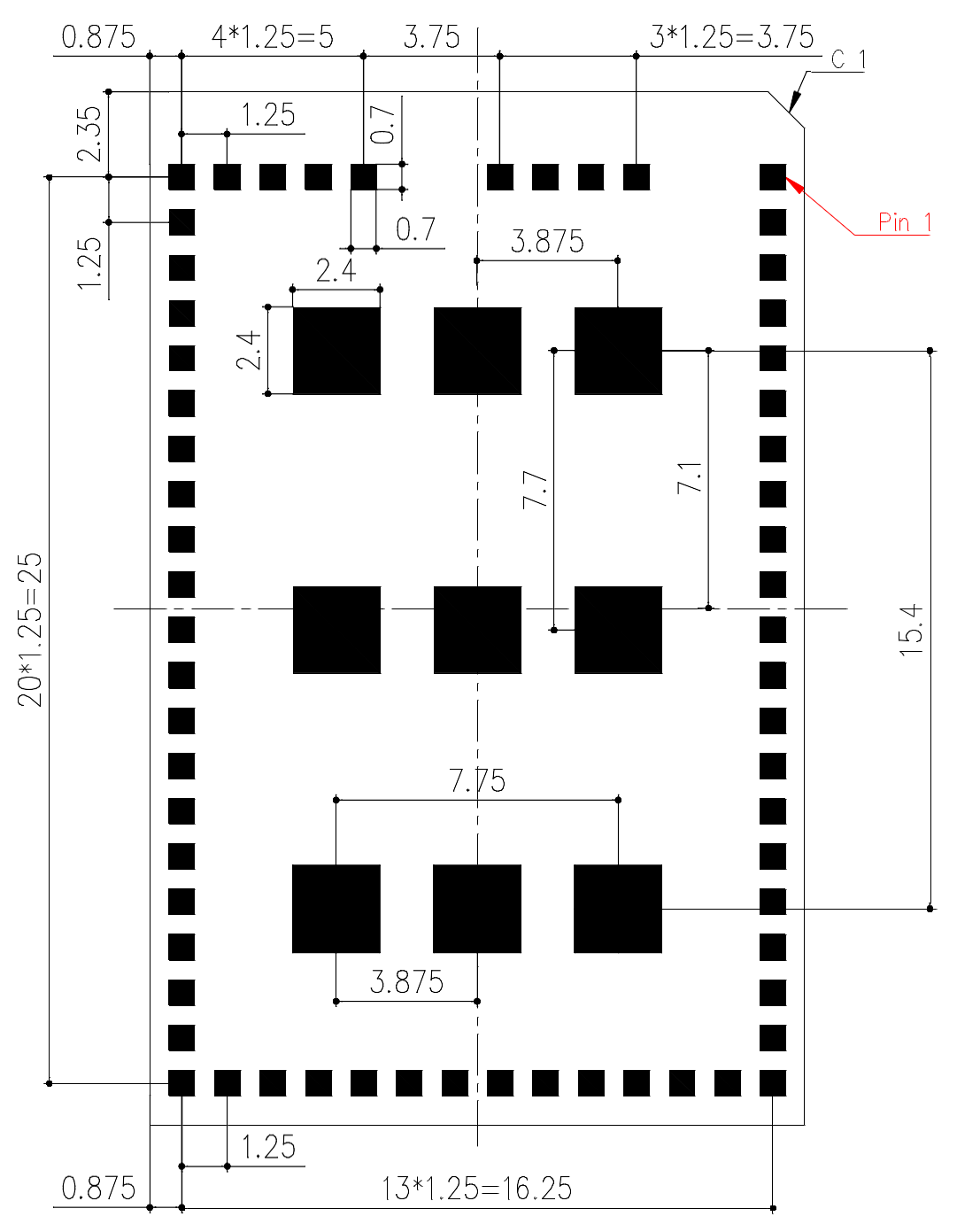

xPico 600 LGA Bottom Dimensions

M.2 Module Dimensions

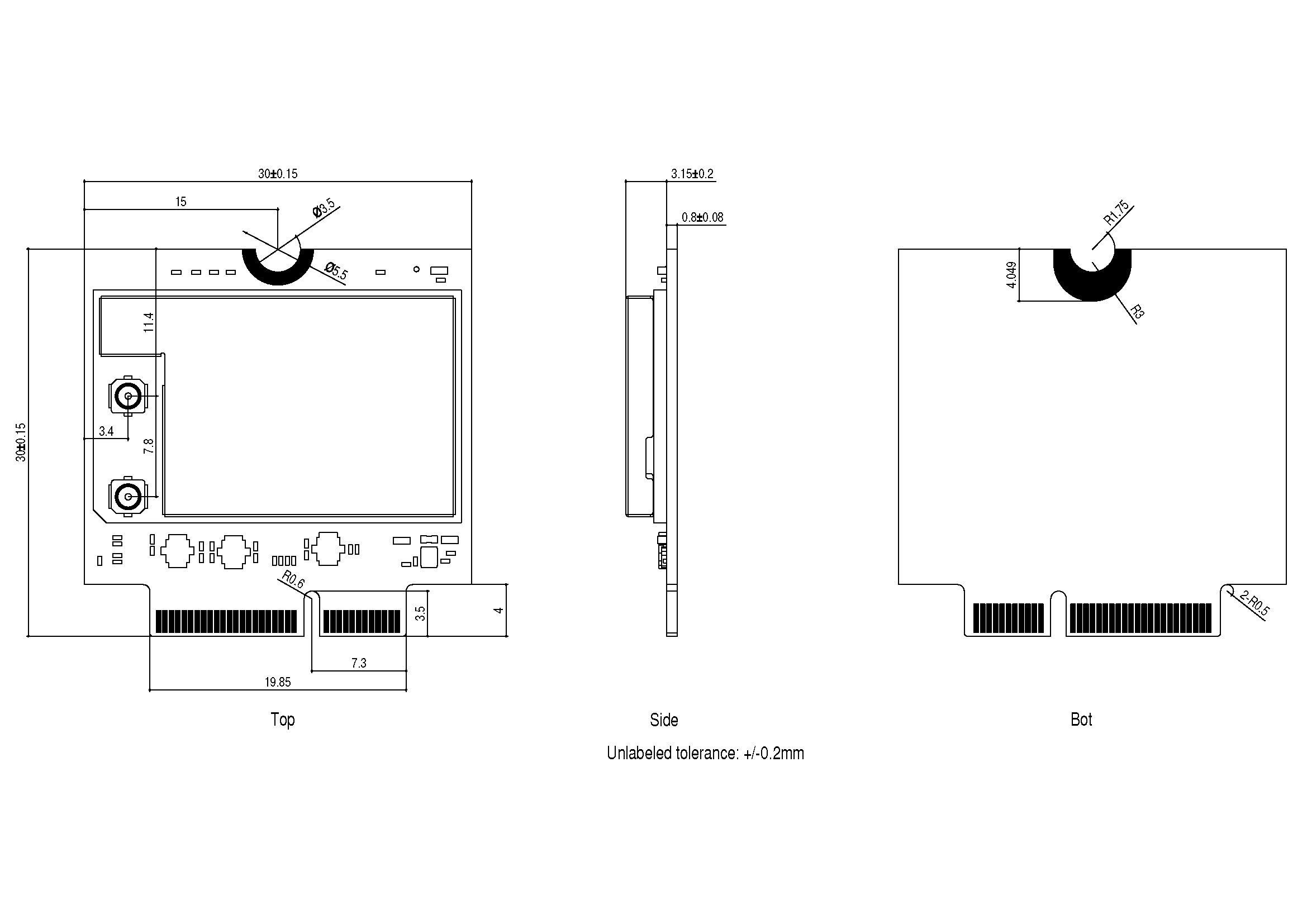

xPico 600 M.2 Dimensions

Note

The xPico 600 module's coplanarity standard is ≤ 0.13 mm.

Recommended Footprint

LGA Recommended Footprint

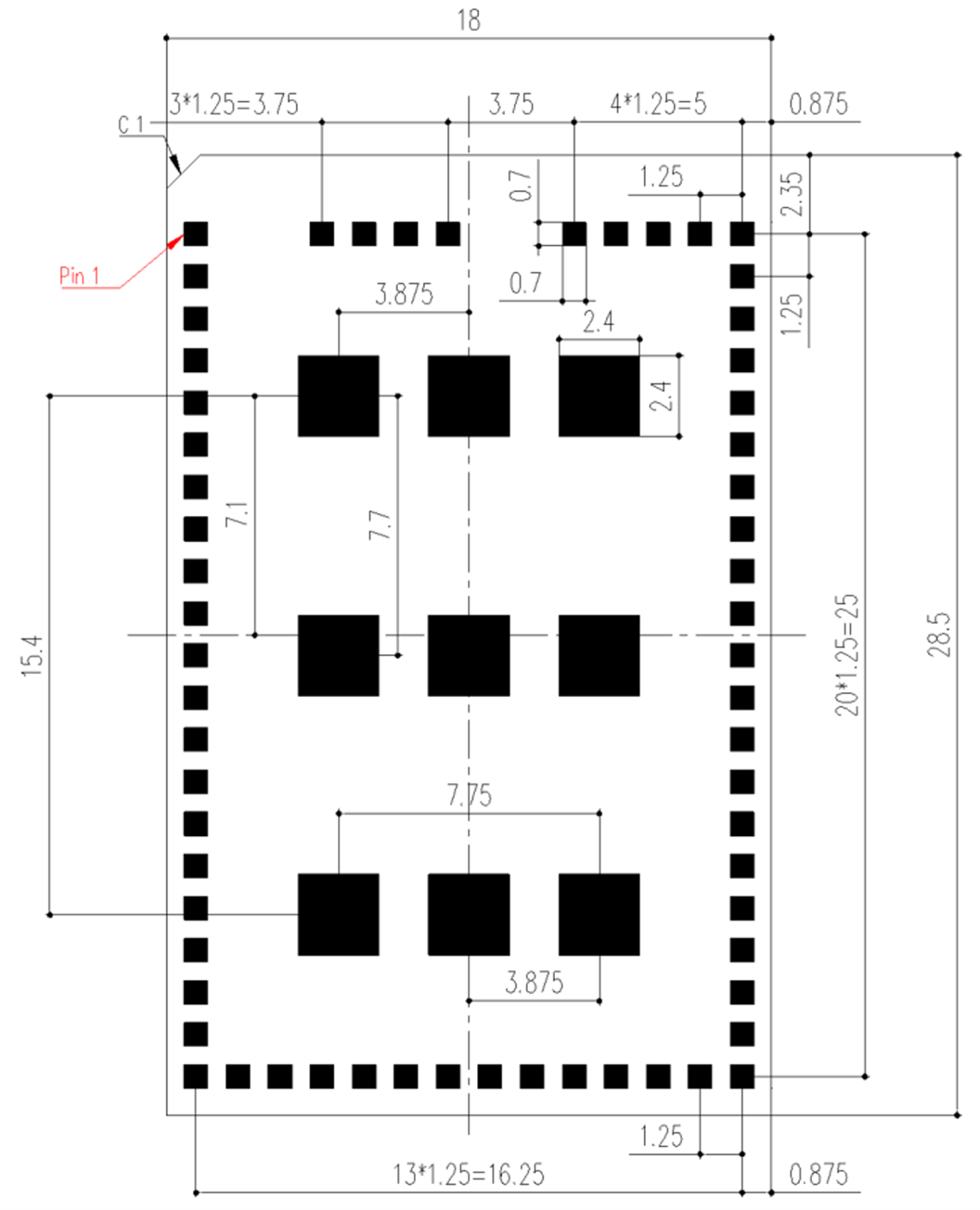

xPico 600 LGA Recommended Footprint

Note

Keep at least 3 mm between the module and other components on the motherboard to improve soldering quality and ease of maintenance.
