Antenna Installation/Removal Guidelines

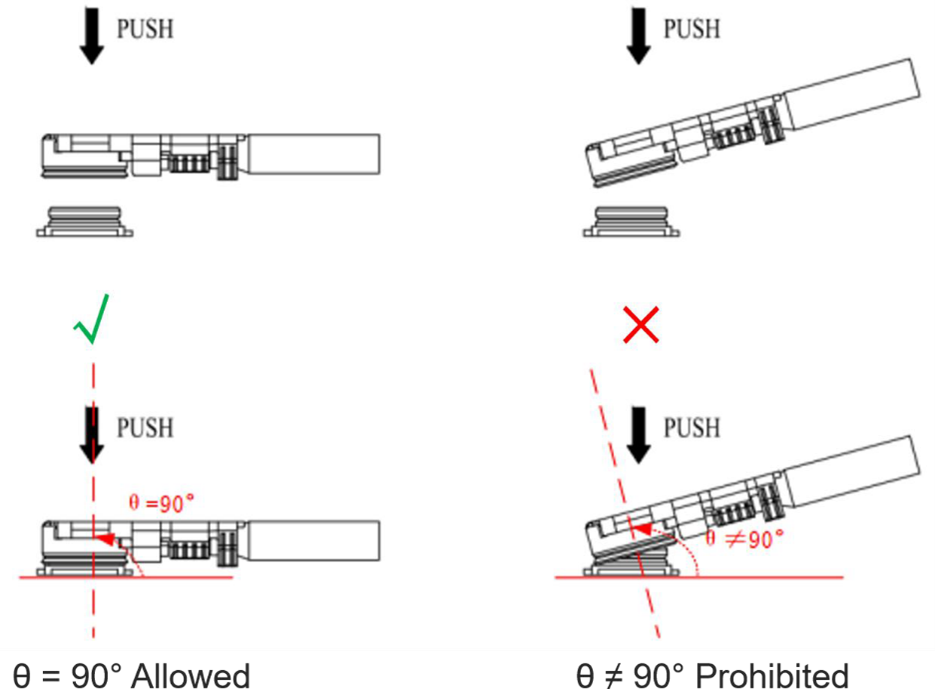

Pictures for manually plugging in a coaxial cable plug is shown below; ⌀ = 90° is acceptable, while ⌀ ≠ 90° is not.

Plugging in a Coaxial Cable Plug

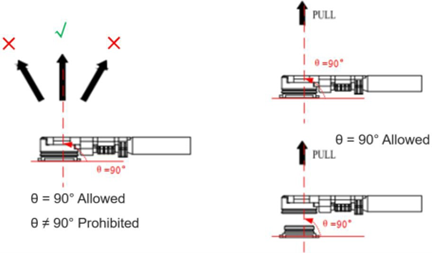

Pictures for manually unplugging the coaxial cable plug is shown below; ⌀ = 90° is acceptable, while ⌀ ≠ 90° is not.

Unplugging a Coaxial Cable Plug

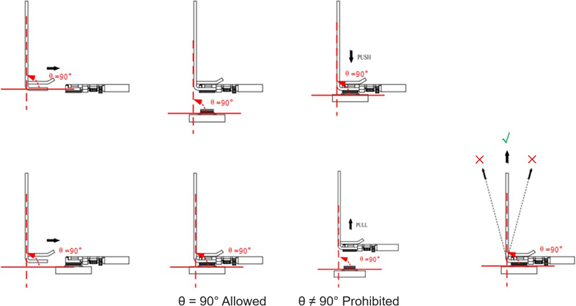

Pictures for installing a coaxial cable plug with a jig is shown below; ⌀ = 90° is acceptable, while ⌀ ≠ 90° is not.

Installing a Coaxial Cable Plug with a Jig
